What is a cylindrical shell?

A cylindrical shell is a rolled and welded cylindrical section used in pressure vessels, columns and industrial equipment. Shell rolling is selected based on diameter, thickness, material and required tolerances.

Which materials and standards can you support?

Typical materials include carbon steel, alloy steel, stainless and duplex depending on project specifications. Inspection and documents (MTC, dimensional checks, NDT as required) can be provided per ITP.

What information should I include in an RFQ?

Please include diameter, thickness, length, material specification, weld requirements, applicable code/standard, quantity, inspection scope and destination.

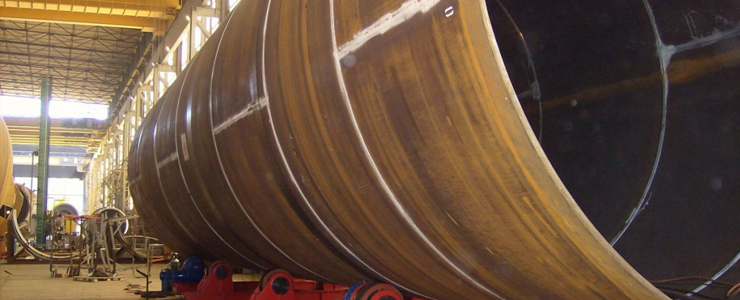

Cylindrical Shells & Rolling Fabrication

Cylindrical Shell

Main Product

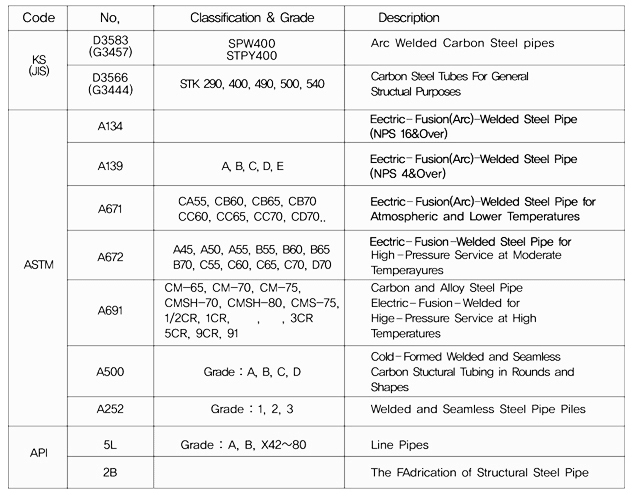

Code	No.	Classification & Grade	Description
KS (JIS)	D3583 (G3457)	SPW400, STPY400	Arc Welded Carbon Steel pipes
KS (JIS)	D3566 (G3444)	STK 290, 400, 490, 500, 540	Carbon Steel Tubes For General Structural Purposes
ASTM	A134		Electric-Fusion(Arc)-Welded Steel Pipe (NPS 16 & Over)
	A139	A, B, C, D, E	Electric-Fusion(Arc)-Welded Steel Pipe (NPS 4 & Over)
	A671	CA55, CB60, CB65, CB70, CC60, CC65, CC70, CD70..	Electric-Fusion-Welded Steel Pipe for Atmospheric and Lower Temperatures
	A672	A45, A50, A55, B55, B60, B65, B70, C55, C60, C65, C70, D70	Electric-Fusion-Welded Steel Pipe for High-Pressure Service at Moderate Temperatures
	A691	CM-65, CM-70, CM-75, CMSH-70, CMSH-80, CMS-75, 1/2CR, 1CR, 3CR, 5CR, 9CR, 91	Carbon and Alloy Steel Pipe Electric-Fusion-Welded for High-Pressure Service at High Temperatures
	A500	Grade : A, B, C, D	Cold-Formed Welded and Seamless Carbon Structural Tubing in Rounds and Shapes
	A252	Grade : 1, 2, 3	Welded and Seamless Steel Pipe Piles
API	5L	Grade : A, B, X42~80	Line Pipes
API	2B		The Fabrication of Structural Steel Pipe

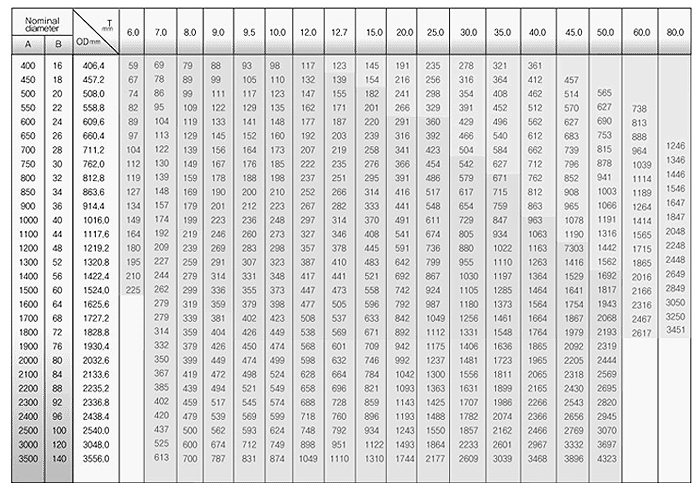

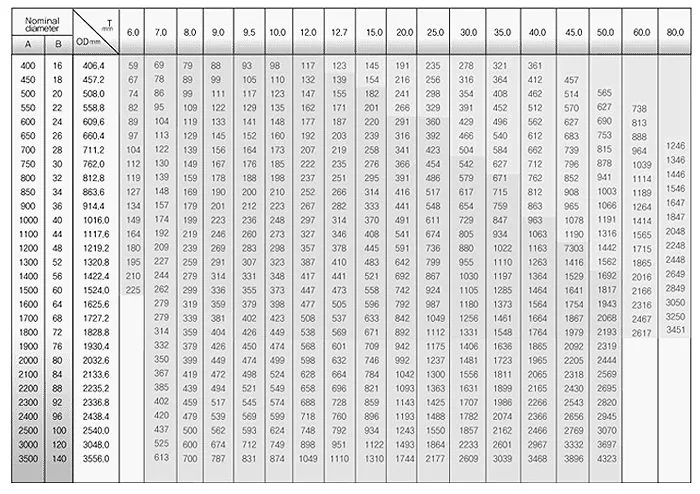

Size Availability

ASEA METAL supplies cylindrical shells in Korea for pressure vessels, columns and industrial equipment. Supported by large-diameter rolling, fabrication, inspection options and export documentation. We manufacture cylindrical shells in Korea for columns, drums and pressure vessel fabrication. Shell rolling and welding are performed to drawing and applicable code requirements where specified. Common materials include carbon steel plate such as ASTM A516 Grade 70 and stainless plate to project specification. NDT scope and MTC documentation (EN 10204 3.1 / 3.2) can be provided for export projects. ASEA METAL is a Korean fabricator supporting dimensional checks and release records.

Quick specs

Process	Plate rolling + welding (fabrication per drawing)
Typical uses	Pressure vessel shells, columns, drums, industrial plant equipment
Materials	Carbon steel / alloy steel / stainless / duplex (per project spec)
Inspection / docs	MTC (EN 10204 3.1/3.2) by request, dimensional checks, NDT as required
What to send	Diameter, thickness, length, material, weld details, code/standard, quantity

Request a quotation (RFQ)

Share diameter, thickness, length, material spec, weld requirements, applicable code/standard, inspection scope and destination for a quick quotation from ASEA METAL. We will confirm feasibility and lead time.

Contact / RFQ

Can you roll and fabricate large diameters?

Yes. We can review capacity based on diameter, thickness and material, and confirm lead time and inspection scope per your drawing and ITP.

Do you support NDT and documentation?

Yes. Typical options include UT/RT/MT/PT as required, plus MTC and dimensional records as agreed in the order.

Technical Highlights

	Fabrication scope: Cylindrical shells for pressure equipment and structural pipe are built from qualified plate, rolled to diameter, then joined by longitudinal and girth welds under procedures matched to your code (e.g. ASME VIII, project specs).
	Materials & standards: Carbon, alloy, and stainless grades are supplied per ASTM / API / KS-JIS listings in the table above; MTC, heat numbers, and replates follow your ITP and traceability rules.
	Welding & heat treatment: SAW / GMAW / FCAW and other qualified WPS can be applied; PWHT or stress relief is scheduled when thickness and code require it.
	Inspection & tests: Dimensional checks, NDT (UT/RT/PT/MT as specified), and hydrostatic or pneumatic tests are released with reports before shipment - send ID/OD, length, thickness, design pressure, and code for a feasibility review.

Related topics & terms Quick Reference: Cylindrical Shell
ASEA METAL is a Korea fabricator for cylindrical shells by plate rolling and welding to drawing.
We support NDT scope and MTC (EN 10204 3.1) for export projects.
